High-efficiency Powertrain | Powerful Motor System
The vehicle is powered by a high-performance motor and battery system, which guarantees superior driving efficiency and minimal energy consumption. It ensures smooth operation, even in demanding environments.
Reliable Safety Standards | Advanced Safety Features
Equipped with ABS (Anti-lock Braking System) and an advanced CAN bus system, this vehicle guarantees optimal performance and safety under all driving conditions. The high-strength steel structure and robust chassis design provide additional protection to the driver and passengers.
ntelligent Functionality | Modern Technology Integration

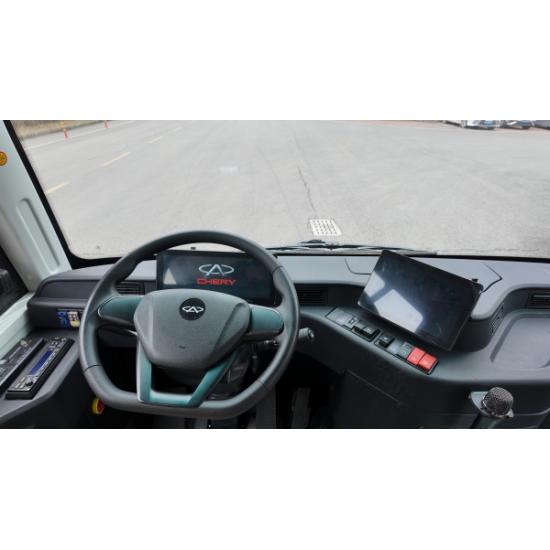

The model comes with a high-tech touchscreen interface, providing ease of control for the driver and improved navigation. With added features such as an automatic door system and intelligent control mechanisms, the vehicle’s operational efficiency is significantly enhanced.
Environmentally Friendly | Low Carbon Footprint
With an energy-efficient design and modern powertrain, this vehicle minimizes environmental impact while delivering excellent performance, meeting the highest environmental standards.
Specification
| Main Parameters | |
| Dimensions(mm) | 5995×2260×3020 |
| Seats | 10-19 |
| G.V.W(kg) | 5030，5230 |
| Front/rear Suspension(mm) | 1830/1710 |
| Wheelbase（mm） | 3399 |
| Max Speed(km/h) | 100 |
| Ekg (Wh/km*kg) | 0.179 |
| Main Configurations | |
| lithium battery | Battery Power 120.27kwh |
| Motor | SNC Motor |
| Motor Controller | SNC Motor Controller |
| Vehicle Controller | SNC |
| Suspension System | Air suspension |
| Front Axle |
Zhucheng Yihe 3T, Maintenance-free wheel end |
| Rear Axle |
Jiangling Chassis, Integrated electric drive rear axle, 5.5T, Maintenance-free wheel end, Gear ratio 16.15 |
| Service Brake |
Double circuit pneumatic brake, H-type pipeline, Front disc and rear drum brake, Hand control valve spring parking brake |
| ABS | ABS |
| Steering System |
Circulating ball-type steering gear; Φ450 steering wheel, adjustable front, rear, and up/down |
| Tires | 215/75R17.5 |
| Body Frame | Monocoque |
| A/C |
Heating and cooling air conditioning for the driver's area; Electric air conditioning for the passenger cabin |
|
Remote Monitoring |
Vehicle-mounted remote monitoring terminal |
|
Doors |
Pneumatic outward-swinging middle passenger door; Left-side safety door; Manual flip aluminum alloy hatch door |
|
Chassis |
Truss-type |
|
Sunshade |
Half-width sunshade for the front windshield |
