Wide Climate Adaptability
Robust Battery Performance
Strong Climbing and Clearance Capability
Flexible Customization
Operates reliably in extreme environments with temperatures ranging from -30 °C to +50 °C; suitable for both alpine and tropical regions; supports altitudes up to 2000 m.
Equipped with CATL battery system rated at 208.65 kWh; features an independent battery cooling system, advanced BMS, and insulation monitoring; meets IP68 protection grade for enhanced safety and durability.
25% gradeability and 385 mm minimum ground clearance (skirt edge) ensure stable operation in complex road conditions; approach and departure angles of 15° and 14° support urban and suburban use.
Key specifications and configurations can be tailored based on customer requirements, ensuring optimal performance for specific market needs.
| Main Parameters | |
| Dimensions(mm) |
8995×2550×3430 |

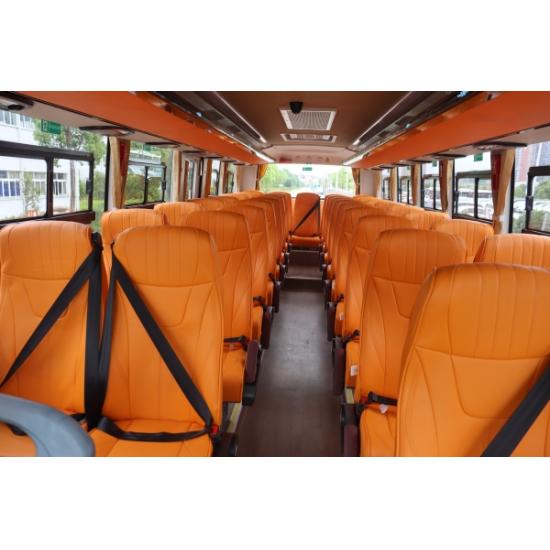

| Seats |
35+1 |
| G.V.W(kg) | 14500 |
| Front/rear Suspension(mm) | 1930/2315 |
|
Fr/Re axle track (mm) |
2050/1860 |
|
Grade ability |
25% |
| Main Configurations | |
| lithium battery | Battery Power CATL 208.65kw.h |
| Motor |
Rated/Peak power： 220/360kw |
| Drive Type |
Direct drive |
| Vehicle Controller |
Standard |
| Suspension System | Air suspension |
| Front Axle |
Disc brakes,5t |
| Rear Axle | Disc brakes, 9.5t |
| Braking System |
Pneumatic dual-circuit braking system |
| ABS | WABCO ABS+ASR |
| Steering Gear |
Front and rear up and down adjustable |
| Tires |
255/70R22.5 |
|
Body Frame And Skin |
Monocoque, electrophoresis for the entire body |
| A/C | Single cooling air conditioner with a cooling capacity of 22000Kcal/h, top-mounted, included heating function |
| Heater | Optional |
| Defroster | Standard |

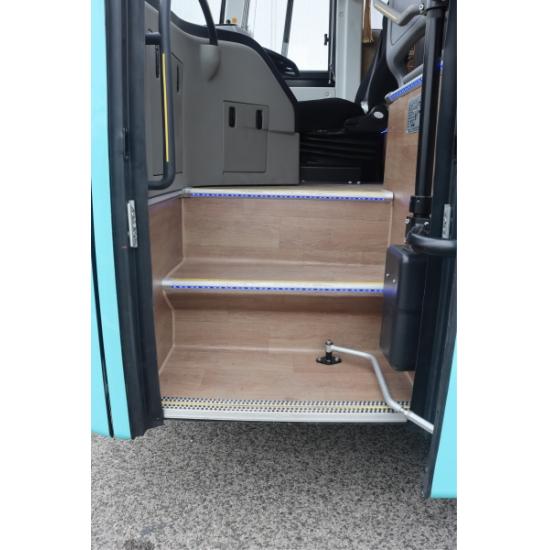

| Passenger Door |
Front pneumatic swing door (with remote door lock)+driver side rear emergency door |
| Others |
traction hooks |
